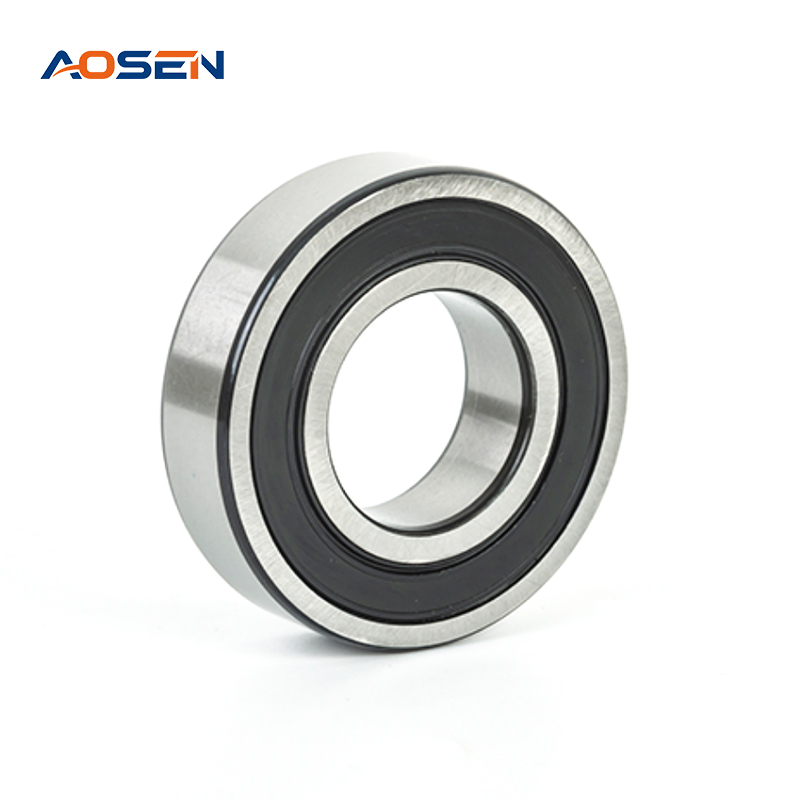

6200 Series Deep Groove Ball Bearings

Core Material: High-Quality GCr15 Bearing Steel

This series of products is entirely manufactured using high-quality GCr15 high-carbon chromium bearing steel. GCr15 is renowned for its superior comprehensive mechanical properties. After a precise heat treatment process, it endows the bearings with extremely high durability:

High Hardness and High Wear Resistance: Effectively resists metal wear during long-term operation, significantly extending the bearing's service life.

Excellent Fatigue Strength: Not prone to fatigue spalling under continuous high-frequency, high-pressure contact stress, ensuring reliability under heavy-load conditions.

Excellent Dimensional Stability: Adapts to varying temperatures and operating environments, maintaining high-precision mechanical operation over long periods.

What Are Angular Contact Ball Bearings and How Do They Work, Types, and Applications?
20 Mar, 2026
Working Principle of Angular Contact Ball Bearings Understanding the working principle of angular contact ball bearings ...
READ MORE
What Makes SS420 Stainless Steel Ball Bearings the Best Choice for Corrosive Environments
19 Mar, 2026
What Is SS420 Stainless Steel and Why It Matters for Ball Bearings SS420 stainless steel is a martensitic-grade stainles...
READ MORE
Deep Groove Ball Bearing: Types, Uses & Stainless Steel Guide
19 Mar, 2026
A deep groove ball bearing is a rolling element bearing characterized by deep raceway grooves on both the inner and out...
READ MORE
Aosen Bearing Advances Global Water Treatment with Durable Stainless Steel Bearings
26 Dec, 2025
In the face of the globally increasing demand for water resource protection and management, reliable and durable equipme...
READ MORE
Aosen Bearing Enters Strategic Partnership with a Leading Global Medical Device Manufacturer
26 Dec, 2025
Ningbo Aosen Bearing Co., Ltd. recently announced the signing of a long-term strategic cooperation agreement with a glob...
READ MORE

Bearing No	Outer diameter size					Basic load ratings KN		Mass (KG)
	Bore d mm	O. D D mm	Width B		Chamfer r_sminmm	Dynamic Cr N	Static Cr N
	Bore d mm	O. D D mm	Open type mm	Closed type mm	Chamfer r_sminmm	Dynamic Cr N	Static Cr N
623	3	10	4	4	0.15	640	220	0.0016
624	4	13	5	5	0.2	1150	400	0.0032
625	5	16	5	5	0.3	1880	680	0.0051
626	6	19	6	6	0.3	2800	1060	0.0086
627	7	22	7	7	0.3	3290	1360	0.0131
628	8	24	8	8	0.3	3330	1410	0.0170
629	9	26	8	8	0.3	4160	1780	0.0191
6200	10	30	9	9	0.6	5110	2380	0.0320
6201	12	32	10	10	0.6	6180	3060	0.0370
6202	15	35	11	11	0.6	7450	3700	0.0450
6203	17	40	12	12	0.6	9560	4780	0.0650
6203/42	17	42	12	12	0.6	9560	4780	0.0650
6204	20	47	14	14	1	12840	6650	0.1060
6205	25	52	15	15	1	14020	7930	0.1280
6206	30	62	16	16	1	19460	11310	0.1990
6207	35	72	17	17	1.1	25670	15300	0.0880
6208	40	80	18	18	1.1	29520	18140	0.3660
6209	45	85	19	19	2.0	31500	20500	0.4160
6210	50	90	20	20	2.0	35000	23200	0.5000

Bore Diancter	V			V1			V2			V3			V4
Mm	L	M	H	L	M	H	L	M	H	L	M	H	L	M	H
3,4	80	44	44	60	35	32	48	26	22	31	16	15	28	10	10
5,6	110	72	60	74	48	40	58	36	30	35	21	18	32	11	11
7,8,9	130	96	80	92	66	54	72	48	40	44	28	24	38	12	12
10,12	160	120	100	120	80	70	90	60	50	55	35	30	45	14	14
15	210	150	120	150	100	85	110	78	60	65	46	35	52	18	18
17	210	150	120	150	100	85	110	78	60	65	46	35	52	25	25
20	260	190	150	180	125	100	130	100	75	80	60	45	60	25	25
22,25	260	190	150	180	125	100	130	100	75	80	60	45	60	30	32
28	260	190	150	180	125	100	130	100	75	80	60	45	60	35	40
30,32	300	240	190	200	150	130	150	120	100	90	75	60	70	35	40
35	300	240	190	200	150	130	150	120	100	90	75	60	70	42	45
40	360	300	260	240	180	160	180	150	130	110	90	80	82	50	50
45	360	300	260	240	180	160	180	150	130	110	90	80	82	60	60
50	420	320	320	280	200	200	210	160	160	125	100	100	95	70	70

Bore Diancter	Diameter series(0)				Diameter series(2)					Diameter series(3)
Mm	Z	Z1	Z2	Z3	Z	Z1	Z2	Z3	Z4	Z	Z1	Z2	Z3	Z4
5	37	36	34	30	38	37	34	32	-	39	39	37	33	-
6	37	36	34	30	38	37	34	32	-	39	39	37	33	-
7	39	38	35	31	40	38	36	34	-	-	-	-	-	-
8	39	38	35	31	40	38	36	34	-	-	-	-	-	-
9	41	40	36	32	42	40	37	35	-	-	-	-	-	-
10	43	42	38	33	44	42	39	35	30	37	37	44	37	32
12	44	43	39	34	45	43	39	35	30	47	47	45	37	32
15	45	44	40	35	46	44	41	36	31	48	48	46	38	33
17	46	44	40	35	47	45	41	36	31	49	49	47	38	33
20	47	45	41	36	48	46	42	38	33	50	50	48	39	34
22	47	45	41	36	48	46	42	38	33	50	50	48	39	34
25	48	46	42	38	49	47	43	40	36	51	51	49	41	37
28	49	47	43	39	50	48	44	41	37	52	52	50	42	38
30	49	47	43	39	50	48	44	41	37	52	52	50	42	38
32	50	48	44	40	51	49	45	42	38	53	53	51	43	39
35	51	49	45	41	52	50	46	43	39	54	54	52	44	40
40	53	51	46	42	54	52	47	44	40	56	56	45	45	41
45	55	53	48	45	56	54	19	46	43	58	58	56	47	44
50	57	54	50	47	58	55	51	48	45	60	60	57	49	46

Standard	Tolerance class
GB/T307.1	P0	P6	P5	P4
ISO492	C LASSO	CLASS6	CLASS5	CLASS4
AFBMA STD.20	ABEC1	ABEC3	ABEC5	ABEC7

Steel No	Chemical Composition%
Steel No	C	Si	Mn	P	S	Cr
Gcr15	0.95-1.05	0.15-0.35	0.20-0.40	≤0.027	≤0.02	1.30-1.65
