6000 ZZ/2RS Deep Groove Ball Bearings Manufacturers, Suppliers

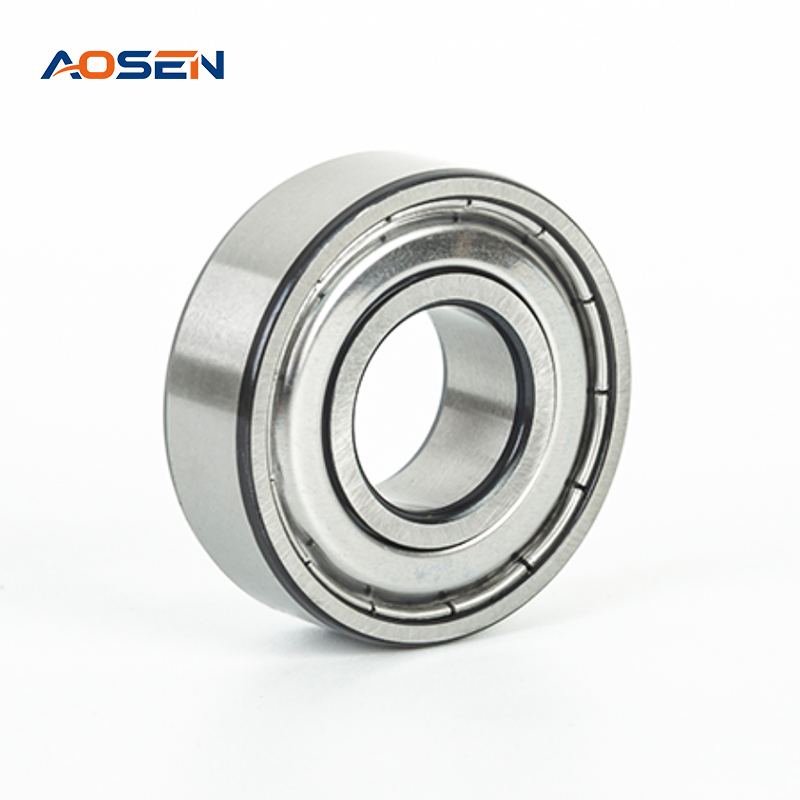

6000 Series Deep Groove Ball Bearings

Deep groove ball bearings are the most representative and widely used type of rolling bearing in the industrial field. They feature a simple structural design, stable operation, and ease of maintenance. This series of bearings is primarily used to withstand radial loads, but can also withstand certain axial loads in both directions, making them an indispensable core transmission component in various types of mechanical equipment.

What Are Angular Contact Ball Bearings and How Do They Work, Types, and Applications?
20 Mar, 2026
Working Principle of Angular Contact Ball Bearings Understanding the working principle of angular contact ball bearings ...
READ MORE
What Makes SS420 Stainless Steel Ball Bearings the Best Choice for Corrosive Environments
19 Mar, 2026
What Is SS420 Stainless Steel and Why It Matters for Ball Bearings SS420 stainless steel is a martensitic-grade stainles...
READ MORE
Deep Groove Ball Bearing: Types, Uses & Stainless Steel Guide
19 Mar, 2026
A deep groove ball bearing is a rolling element bearing characterized by deep raceway grooves on both the inner and out...
READ MORE
Aosen Bearing Advances Global Water Treatment with Durable Stainless Steel Bearings
26 Dec, 2025
In the face of the globally increasing demand for water resource protection and management, reliable and durable equipme...
READ MORE
Aosen Bearing Enters Strategic Partnership with a Leading Global Medical Device Manufacturer
26 Dec, 2025
Ningbo Aosen Bearing Co., Ltd. recently announced the signing of a long-term strategic cooperation agreement with a glob...
READ MORE

Bearing No	Outer diameter size					Basic load ratings KN		Mass (KG)
	Bore d mm	O. D D mm	Width B		Chamfer r_sminmm inch	Dynamic Cr N	Static Cr N
	Bore d mm	O. D D mm	Open type mm	Closed type mm	Chamfer r_sminmm inch	Dynamic Cr N	Static Cr N
603	3	9	3	3	0.2	486	223	0.0014
604	4	12	4	4	0.2	960	350	0.0023
605	5	14	5	5	0.2	1070	420	0.0037
606	6	17	6	6	0.3	1960	730	0.0069
607	7	19	6	6	0.3	2800	1060	0.0082
608	8	22	7	7	0.3	3290	1360	0.0129
609	9	24	7	7	0.3	3330	1410	0.0160
6000	10	26	8	8	0.3	4160	1780	0.0190
6001	12	28	8	8	0.3	5110	2380	0.0220
6002	15	32	9	9	0.3	5590	2840	0.0300
6003	17	35	10	10	0.3	6000	3250	0.0390
6004	20	42	12	12	0.6	9390	5020	0.0690
6005	25	47	12	12	0.6	10060	5860	0.0800
6006	30	55	13	13	1	11900	7460	0.1160
6007	35	62	14	14	1	16210	10420	0.1550
6008	40	68	15	15	1	17030	11700	0.1920
6009	45	75	16	16	1	21080	14780	0.2450
6010	50	80	16	16	1	22000	16260	0.2610

Bore Diancter	V			V1			V2			V3			V4
Mm	L	M	H	L	M	H	L	M	H	L	M	H	L	M	H
3,4	80	44	44	60	35	32	48	26	22	31	16	15	28	10	10
5,6	110	72	60	74	48	40	58	36	30	35	21	18	32	11	11
7,8,9	130	96	80	92	66	54	72	48	40	44	28	24	38	12	12
10,12	160	120	100	120	80	70	90	60	50	55	35	30	45	14	14
15	210	150	120	150	100	85	110	78	60	65	46	35	52	18	18
17	210	150	120	150	100	85	110	78	60	65	46	35	52	25	25
20	260	190	150	180	125	100	130	100	75	80	60	45	60	25	25
22,25	260	190	150	180	125	100	130	100	75	80	60	45	60	30	32
28	260	190	150	180	125	100	130	100	75	80	60	45	60	35	40
30,32	300	240	190	200	150	130	150	120	100	90	75	60	70	35	40
35	300	240	190	200	150	130	150	120	100	90	75	60	70	42	45
40	360	300	260	240	180	160	180	150	130	110	90	80	82	50	50
45	360	300	260	240	180	160	180	150	130	110	90	80	82	60	60
50	420	320	320	280	200	200	210	160	160	125	100	100	95	70	70

Bore Diancter	Diameter series(0)				Diameter series(2)					Diameter series(3)
Mm	Z	Z1	Z2	Z3	Z	Z1	Z2	Z3	Z4	Z	Z1	Z2	Z3	Z4
5	37	36	34	30	38	37	34	32	-	39	39	37	33	-
6	37	36	34	30	38	37	34	32	-	39	39	37	33	-
7	39	38	35	31	40	38	36	34	-	-	-	-	-	-
8	39	38	35	31	40	38	36	34	-	-	-	-	-	-
9	41	40	36	32	42	40	37	35	-	-	-	-	-	-
10	43	42	38	33	44	42	39	35	30	37	37	44	37	32
12	44	43	39	34	45	43	39	35	30	47	47	45	37	32
15	45	44	40	35	46	44	41	36	31	48	48	46	38	33
17	46	44	40	35	47	45	41	36	31	49	49	47	38	33
20	47	45	41	36	48	46	42	38	33	50	50	48	39	34
22	47	45	41	36	48	46	42	38	33	50	50	48	39	34
25	48	46	42	38	49	47	43	40	36	51	51	49	41	37
28	49	47	43	39	50	48	44	41	37	52	52	50	42	38
30	49	47	43	39	50	48	44	41	37	52	52	50	42	38
32	50	48	44	40	51	49	45	42	38	53	53	51	43	39
35	51	49	45	41	52	50	46	43	39	54	54	52	44	40
40	53	51	46	42	54	52	47	44	40	56	56	45	45	41
45	55	53	48	45	56	54	19	46	43	58	58	56	47	44
50	57	54	50	47	58	55	51	48	45	60	60	57	49	46

Standard	Tolerance class
GB/T307.1	P0	P6	P5	P4
ISO492	C LASSO	CLASS6	CLASS5	CLASS4
AFBMA STD.20	ABEC1	ABEC3	ABEC5	ABEC7

Steel No	Chemical Composition%
Steel No	C	Si	Mn	P	S	Cr
Gcr15	0.95-1.05	0.15-0.35	0.20-0.40	≤0.027	≤0.02	1.30-1.65
